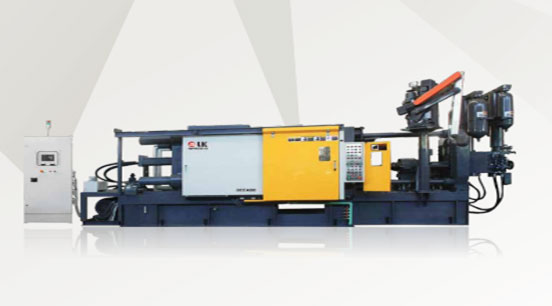

Aluminum Pressure Die casting Machine

Aluminum Pressure Die casting Machine | Manufacturers and Suppliers of Aluminum Pressure Die Casting Machine in India

Aluminum Pressure Die-casting Machine
Aluminum Pressure Die casting Machine

Manufacturers of Aluminum Pressure Die Casting Machine in India

the best aluminum pressure Die Casting Machine manufacturers and suppliers in India.



L.K. Machinery India Pvt. Ltd., is the leading aluminum pressure die-casting manufacturers and suppliers in India.

We have been providing our customers with high-quality products and services since 1979. The Aluminum Pressure Die Casting Suppliers offer a wide range of products and services at competitive prices.

Our team of experts has been manufacturing and supplying this High-Quality Aluminum Pressure Die-casting Machine for the past 4 decades.

Our customers are happy with our quality products and services because we have a strong team of professionals who are dedicated to their field and provide customers with a lot of value.


Aluminum Pressure Die Casting Machine Details:

Product name Aluminum pressure die-casting
Brand LK Industries
Body Material Aluminum
Machine Type Pressure
Application Industrial

How it Works?

Aluminum pressure die-casting Machine is a manufacturing process where molten Aluminum is forced into a mold under high-pressure.

Aluminum Pressure Die-casting Machine

The process includes the following steps:

  • Aluminum material is heated to the melting point and poured into a mold.
  • The molten metal is then forced into the mold using High-Pressure.
  • When the metal cools, it solidifies and forms a part of a cast or die
  • When finished, the part can be removed from the mold and machined as needed.

Benefits:

  • The benefits of using Aluminum Pressure Die-casting Machine are that it is easy to use and can be done at scale.
  • It is also light in weight which makes it ideal for transportation purposes like planes and ships.
  • It provides the cost-effectiveness, durability, and sustainability.
  • It can be used for a wide range of purposes in aircrafts, cars, and medical implants.
  • It can produce parts with superior surface quality and dimensional accuracy.
Aluminum Pressure Die-casting Machine

Why Select Us?

  • The Aluminum Pressure Die-casting Machine Suppliers have a team of skilled professionals who can provide excellent service to you at any time.
  • We provide ISO certified standard products, which ensures the quality standards for all our products.
  • Our team has years of experience in this industry, which enables us to provide top-notch quality service to our clients every time they work with us.
  • We are not only offering quality products but also provide timely delivery and services to our customers.

Simple and Effective Solution for You

Easy to use Energy efficient

Powerful and flexible

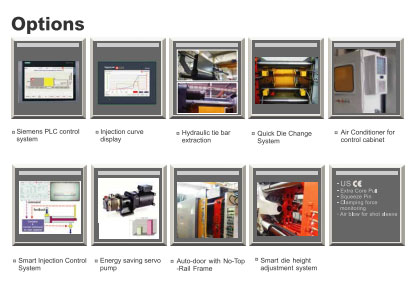

1) Advanced operating system

  • Colour touchscreen, with clear instructions and easy to use functions
  • Advanced smart control system with more functions (optional)

2) Champing system

  • Top-notch toggle and tie bar design to ensure reliability and durability
  • Die opening backpressure circuit design, with faster die open/close and higher stability

3) Smart die height adjustment

  • Gear type die height adjustment with anti-loose function, result in precise adjustment and more stable production

4) Smart die height adjustment

  • Save time and easy operations (optional)
  • Hydraulic driving system - Designed to be energy efficient - Servo energy saving system that can further reduce energy consumption (optional)

5) Stable injection unit

  • The coaxial injection mechanism design can provide strong and stable injection force
  • Hydraulic check valve for faster pressure build up and easier control - Applied with Non
  • contact type magnetic encoder is used at the plunger position for more convenience and durability
  • Automatic or smart injection with more advanced injection functions (optional)

6) Safety Door

  • Lightweight design
  • Electric safety door that can achieve fully automatic operation (optional)

Aluminum Pressure Die-casting Machine
Model LN-02 LN-04 LN-06
Applicable DCM 130-400 T 580-800 T 900 T
Ladle Amount 1.0-3.5 kg 3.5-8 kg 8-20 kg
Ladling Accuracy + 2 % + 2 % + 2%
Ladle Cup Size 1/1.5/2.5/3.5/4.5/6/8/10/12kg
Min. Crucible Diameter 480 mm 580 mm 800 mm
Ladle Motor 0.2 kW 0.2 kW 0.4 kW
Arm Motor 0.75 kW 0.75 kW 1,5 kW
Control System Controlled by Die Casting Machine Control Cabinet
Position Control Digital setting on screen
Control

EP-V Series Servo Extractor:

Model EP-01V EP-02V EP-03V EP-04V
Applicable DCM 130-200 T 280-400 T 580T 700-900T
Gripper Diameter 40-80 mm 40-80 mm 50-90 mm 60-110 mm
No. of Gripper Fingers 2 2 3 3
Extracting Force 68 kgf 68 kgf 98 kgf 98 kgf
Max. Extracting Stroke 250mm 250mm 300mm 300mm
Air Pressure 6 kgf/cm2 6 kgf/cm2 6 kgf/cm2 6 kgf/cm2
Casting Weight 3 kg 4 kg 6 kg 6 kg
Servo Motor Power 0.85 kW 0.85 kW 1.3 kW 1.3 kW
Control System Integrated control on DCM's screen
Aluminum Pressure Die-casting Machine

ST-V Series Servo Sprayer

Model ST-01V ST-02V
Applicable DCM 130-200T 280-400T
No. of Sprayer Nozzles Total no.: 10 Total no.: 14
on Fixed Platen (2 rows X 5 pieces) (2 rows x 7 pieces)
No. of Sprayer Nozzles Total no.: 10 Total no.: 14
on Moving Platen (2 rows X 5 pieces)Total no.: 10 (2 rows X 7 pieces)Total no.: 14
Air Blow Amount (Moving Platen: 5, (Moving Platen: 7,
Sprayer Head Fixed Platen: 5) Fixed Platen: 7)
Control Unit Controlled Based on row, 1unit per row, totaling 4 units
Vertical Stroke 650mm 800mm
Base Stroke 250mm 250mm
Servo Motor Power 3.0kW 3.0 kW
Control System Controlled by Die Casting Machine Control Cabinet
Method of Spraying
Time Adjustment

ITEMS UNIT DCC130 DCC160 DCC200
Locking Force KN 1450 1600 2000
Die Open Stroke mm 350 380 400
Ejector Force KN 108 108 108
Ejector Stroke mm 85 85 100
Die Height (Mis Max : mm 250-500 200-550 200-600

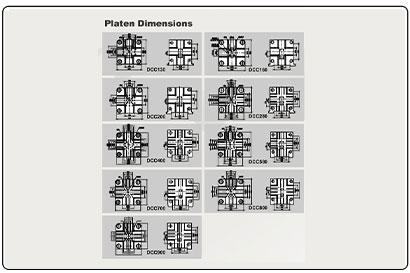

Die Platen Size (HKY) mm 650X850 680X680 740X740
Space Between Tie Bars mm 429X429 460X460 510X510
Shot Position mm 100 0 0 -75 140 0 140 0
Shot Stroke mm 320 340 370
Injection Force (Intensify) KN 220 270 270
Plunger Diameter mm 50 60 40 40 50 60 50 70 60 50
Shot Weight (AI) kg 0.7 1.15 1.6 0.8 1.8 1.3 1.35 2.65 1.95 1.5
Casting Pressure (Intensify) MPa 175 112 77 214 95 137 137 95 70 188
Casting Area cm 129 82 186 74 116 167 145 285 209 188
Casting Area Max. (40MPa) cm2 362 400 500
Chamber Flange Diameter mm 110 101.6 101.6
Heigh Pressure Chamber Range mm 10 12 12
Planger Perstration mm 115 135 140
Main Pump Driving Motor. KW 11 15 15
Working Pressure MPa 14 14 14
Oil Tank Capacity L 480 520 550
Machine Dimensions LXWXH mm 5680X1 10X2584 5070X 1880X2605
Referential Machine Weight. T 7 B

DCC400 DCC580 DCC700 DCC800 DCC900
4000 5800 7000 8000 9000
550 580 720 760 800
180 240 315 315 360
125 140 160 180 190
300-700 350-850 350-900 400-950 400-1000
1019X1019 1162X1162 1320X1320 1400X1400 1480X1480
669X669 760X760 860X860 910X910 960X960
669X669 760X760 860X860 910X910 960X960
0 -175 0 -175 0 250 0 -250 250 0
500 580 700 760 760
410 480 590 680 775
60 70 80 80 70 90 80 100 90 80 90 100 80 100 90 110
2.7 3.6 4.7 4.2 6.9 5.4 6.5 8.3 10 11.2 9 7.1 13.5 9 7.1 11.2
145 106 81 95 124 75 92 75 117 86 106 135 121 98 154 81
490 275 375 465 768 607 596 931 754 591 924 748 738 583 912 1103
1000 1450 1750 2000 2250
101.6 165 165 200 200
12 15 15 20 20
200 250 250 295 300
30 30 37 45 45
14 14 14 14 14
800 1000 1200 1300 1400
7190X1990X2810 7690X2130X2855 8460X2230X2945 8840X2345X2999 927032700X3356
15.5 21 29 31.5 M

Aluminum Pressure Die-casting Machine

Description - Pressure/Aluminum Die-casting Machine:

Aluminum Pressure Die-casting Machine is a process of extruding molten Aluminum from a die without the use of external force.

It has been used across many manufacturing sectors because it can produce high-quality parts that are lightweight and durable.

It has become more popular due to its environmental benefits.

It uses less energy than other processes like rolling and forging.

Applications - Aluminum Pressure Die casting Machine:

Our Aluminum Pressure Die-casting Machine are used in various industries such as-

  • Automotive
  • Aerospace
  • Manufacturing
  • Construction
  • Engineering
  • Defence
  • Power generation, and many more
